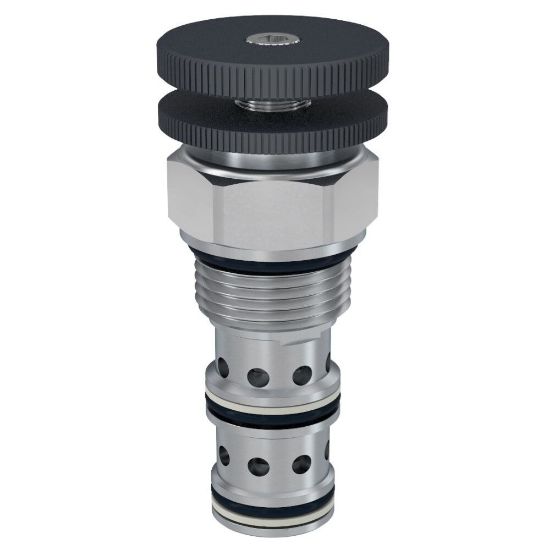

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Pressure Reducing Relieving Valves - PRH121T30

Name: Pilot Operated Pressure Reducing Relieving Valves - PRH121T30
SKU: PRH121T30
Availability: OutOfStock

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU: PRH121T30

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.27 kg	Maximum Operating Pressure	350 bar
Maximum Pressure Setting	210 bar	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-34 °C	Function	Pilot Operated
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Tamper Resistant	Maximum Tank Pressure	5000 psi
Port Thread Size	n/a	Cavity Size	C12-3
Maximum Flow Rate	30 Gal/min	Configuration	Pressure Reducing/Relieving
Maximum Inlet Pressure Rating	5500 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Flow Rate	30 Gal/min
Installation Torque	75 Nm	Leak Rate	N/A cc/min
Maximum Drain Flow Rate	0.25 Gal/min	Standard Setting Pressure	1500 psi
Cracking Pressure	N/A psi	Pressure Control Range	20.7-210 bar
Pressure Control Sensitivity	60 per turn bar
Seal Material	Nitrile	Mounting Type	Screw in cartridge valve
Adjustment Mechanism	Tamper Resistant	Cracking Pressure	N/A
Flow Rate	30 GAL/MIN, 113.7 L/MIN	Pressure Control Range	300-3000 PSI, 20.7-210 BAR

Product resources

Literature and Reference Materials
