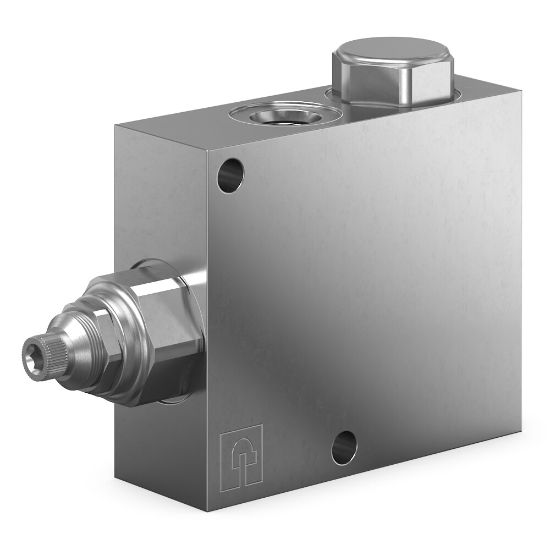

Pilot Operated Pressure Reducing Relieving Valves - PRCH101S20V-8T

Parker’s pilot operated acting reducing & relieving valves are used in applications where specific functions require reduced and regulated pressure. Capable of flows up to 150 lpm (40 gpm) and pressures up to 380 bar (5500 psi).

Availability:	Backordered
Partner Available:	Backordered

SKU: PRCH101S20V-8T

$431.75

Products specifications

Attribute name	Attribute value
Standard Setting Pressure	69 bar	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	Pilot Operated	Cracking Pressure	0.3 bar
Pressure Control Sensitivity	39.3 per turn bar	Maximum Operating Temperature	+400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Operating Temperature	-26 to +204 °C	Pressure Control Range	27-138 bar
Installation Torque	N/A Nm	Maximum Pressure Setting	138 bar
Maximum Flow Rate	15 Gal/min	Weight	1 kg
Maximum Operating Pressure	350 bar	Maximum Drain Flow Rate	0.94 L/min
Leak Rate	N/A cc/min	Mounting Type	Line Mounted
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Adjustment Mechanism	Screw
Minimum Operating Temperature	-15 °F	Valve Material	All parts steel. All operating parts hardened steel
Division	Hydraulic Systems Division	Configuration	Pressure Reducing/Relieving w/Reverse Flow Check
Cavity Size	n/a	Actuation Type	Pressure Sensing
Operation Type	Automatic	Body Material	Steel
Division	Hydraulic Cartridge Systems Division	Port Thread Size	SAE-8
Maximum Inlet Pressure Rating	380 bar	Maximum Tank Pressure	5000 psi
Flow Rate	15 Gal/min
Pressure Control Range	400-2000 PSI, 27-138 BAR	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Seal Material	Fluorocarbon	Cracking Pressure	5 PSI, 0.3 BAR
Mounting Type	Line Mounted	Adjustment Mechanism	Screw
