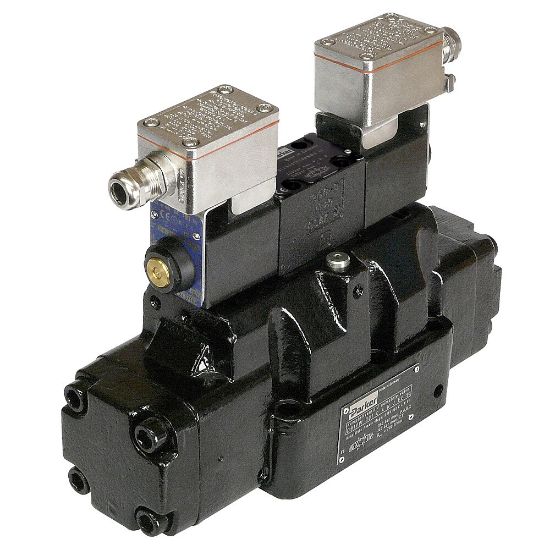

Pilot Operated Directional Control Valve - Series D31DW, D31NW, D41VW, D91VW, D111VW - D111VW020B1NJEE

Name: Pilot Operated Directional Control Valve - Series D31DW, D31NW, D41VW, D91VW, D111VW - D111VW020B1NJEE
SKU: D111VW020B1NJEE
Availability: OutOfStock

Setting standards for pilot operated on-/off valves in terms of functional limits and pressure drop, Parker's series D31DW, D31NW, D*1VW are suitable for practically any industrial application. Optionally available as ex-proof version.

Availability:

Backordered

SKU: D111VW020B1NJEE

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	60 °C
Maximum Operating Pressure	350 bar	Mounting Type	Subplate
Seal Material	NBR	Operation Type	Pilot
Body Material	Cast Iron	For Fluid Type	Hydraulic Oil According to DIN 51524
Actuation Type	Solenoid	Minimum Operating Temperature	-25 °C
Function	3-Way	Weight	67.4 kg
Product Series	Directional Control Valve	Maximum Flow Rate	2000 L/min
Connection Type	Connector as per EN 175301-803
Seal Material	NBR	Port Connection	NG32 / CETOP 10
Marking	Standard	Input Voltage	24 VDC
Pilot Inlet / Drain Locations	Internal/external	Spool Code	020
Maximum Flow Rate	2000 L/min	Bore Diameter	50 mm
Spool Position	2 positions, spring offset in position b, operated in position a	Solenoid Option	Explosion proof solenoids Ex e mb II T4Gb + IECEx conformity
Additional Options	Standard
