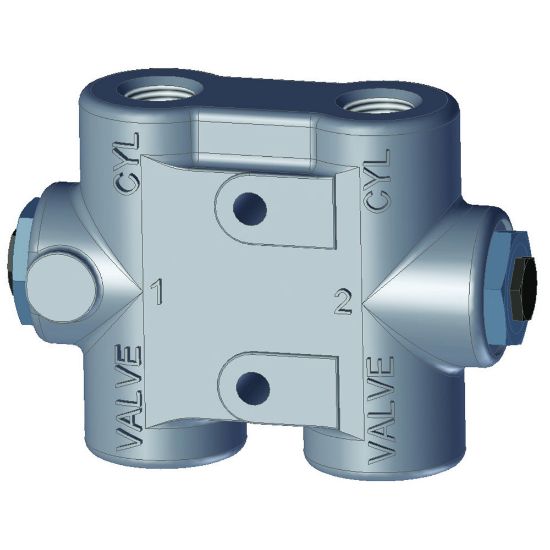

Pilot Operated Check Valves – LO, LOA Series - LO-50-S

Name: Pilot Operated Check Valves – LO, LOA Series - LO-50-S
SKU: LO-50-S
Availability: OutOfStock

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.

Availability:

Backordered

SKU: LO-50-S

Qty:

Products specifications

Attribute name	Attribute value
Mounting Type	In-Line	Configuration	n/a
Division	Hydraulic Valve Systems Division	Actuation Type	Hydraulic Pressure
Body Material	High Strength Cast Iron	Maximum Operating Temperature	+200 °F
Flow Direction	n/a	Weight	6 lb
Seal Material	Nitrile	Product Style	Piolt Operated Check Valve
Connection Type	NPT	Maximum Operating Pressure	2000 psi
Connection Size	1/2"	Options	Single PO Check
Minimum Operating Temperature	-40 °F	Maximum Flow Rate	25 Gal/min
Valve Option	Single	Port Size	1/2" NPT
Flow Rate (gpm)	25
