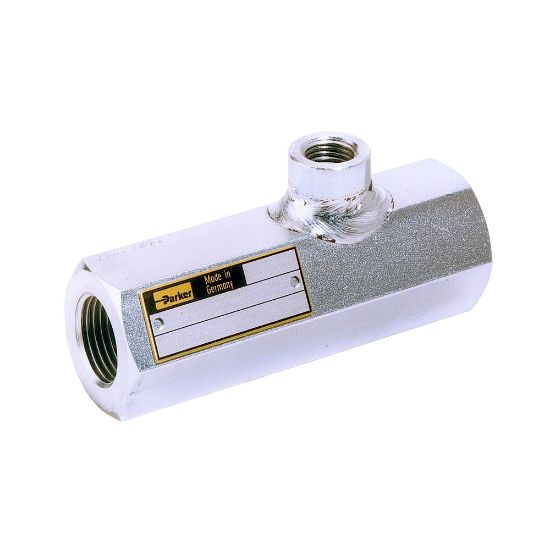

Pilot Operated Check Valve for In-line Mounting - Series RH - RH4

Hydraulically pilot operated check valves series RH for in-line mounting allow free flow in one direction (B to A). The counter flow (A to B) is blocked leak-free.

Availability:

Backordered

SKU: RH4

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot	Minimum Operating Temperature	-20 °C
Configuration	n/a	Maximum Operating Pressure	500 bar
Division	Industrial Systems Division Europe	Connection Type	DIN ISO 228/1
Maximum Operating Temperature	60 °C	Flow Direction	Free flow from B to A
Mounting Position	Unrestricted	Weight	1.3 kg
Mounting Type	Pipe Mounting	Seal Material	n/a
Body Material	Steel	Cracking Pressure	0.2…0.3 bar
Product Series	Check Valve	Actuation Type	Hydraulically
Connection Size	A, B: G 3/4; Z: G 1/4	Maximum Flow Rate	100 L/min
Maximum Flow Rate	100 l/min	Function	Check function without pre-discharging
