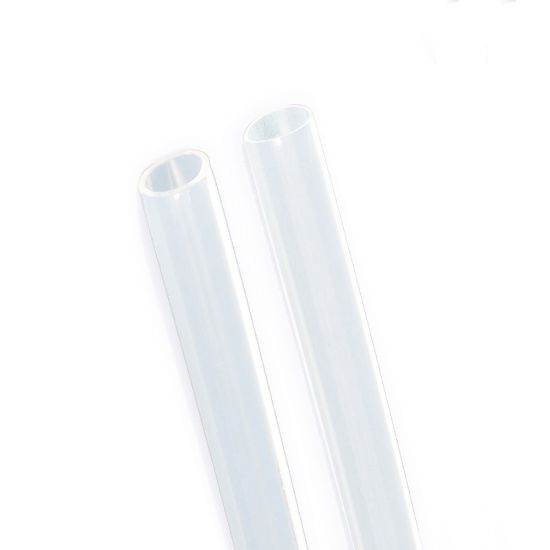

PFA High Purity Tubing - 105-1000062-NT-500

Name: PFA High Purity Tubing - 105-1000062-NT-500
SKU: 105-1000062-NT-500
Availability: OutOfStock

High Purity PFA Series 105 and 205 are manufactured for use in hostile environments where purity is critical. Testing proves that a high purity PFA tube is able to withstand corrosive surfactants for longer periods of time than standard PFA.

Availability:

Backordered

SKU: 105-1000062-NT-500

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	260 °C	Minimum Operating Temperature	-100 °F
Media	Water	Application	Semiconductor
Color	Clear	Compatible Fitting	TrueSeal™
Minimum Bend Radius	203 mm	Weight	0.170 lb/ft
Specifications Met	FDA 21 CFR 177.1550	Minimum Burst Pressure	25 bar
Maximum Operating Pressure	90 psi	Tube Outside Diameter	1.000 inch
Size	1	Tube Material	Perfluoroalkoxy Alkanes (PFA) High Purity
Length per Package	152.4 m	Tube Inside Diameter	22 mm
Product Type	Heavy Wall	Tube Wall Thickness	0.062
Tube Inside Diameter	0.875	Standard Pack Qty (ft)	500.0
Tube Outside Diameter	1.0	Order Size	1.0
