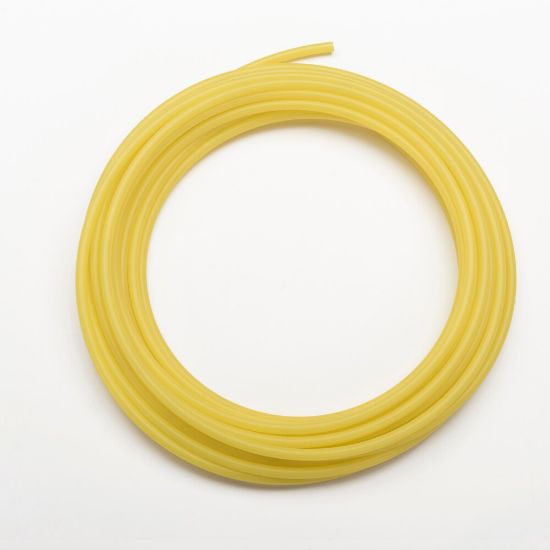

PE Tubing - E-43-Y-0500

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Availability:	Backordered
Partner Available:	17879 in stock

SKU: E-43-Y-0500

$0.28

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	150 °F	Specifications Met	NSF 61
Minimum Operating Temperature	-62 °C	Length per Package	500 ft
Tube Inside Diameter	4.3 mm	Tube Outside Diameter	6.4 mm
Weight	0.011 lb/ft	Product Type	Fractional
Cover Material	n/a	Application	Pneumatics
Division	Parflex Division	Color	Yellow
Maximum Operating Pressure	120 psi	Minimum Bend Radius	25 mm
Minimum Burst Pressure	480 psi	Tube Material	Polyethylene (PE)
Compatible Fitting	Prestolok®	Media	Air
Size	1/4 inch	Cover Color	n/a
Standard Pack Qty (ft)	500	Product Type	Fractional, Instr. Grade
Color	YELLOW	Order Size	.170
