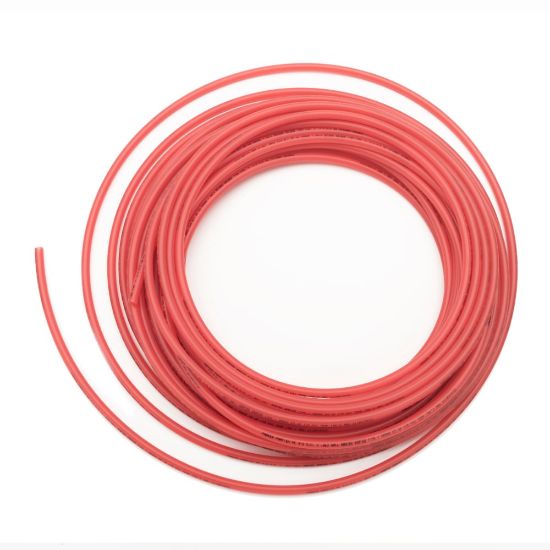

PE Tubing - E-43-R-0500

Polyethylene Tubing - E/EB Series Tubing is instrument grade tubing, made from 100% virgin Linear Low Density Polyethylene (LLDPE). Ideal for water, food, beverages and food grade applications.

Availability:	Backordered
Partner Available:	3419 in stock

SKU: E-43-R-0500

$0.28

Products specifications

Attribute name	Attribute value
Tube Material	Polyethylene (PE)	Cover Color	n/a
Maximum Operating Temperature	66 °C	Weight	0.011 lb/ft
Minimum Bend Radius	1 inch	Cover Material	n/a
Application	Fluid Transfer	Minimum Operating Temperature	-62 °C
Length per Package	500 ft	Tube Inside Diameter	4.3 mm
Specifications Met	NSF 51	Product Type	Fractional
Tube Outside Diameter	6.4 mm	Size	1/4 inch
Maximum Operating Pressure	120 psi	Division	Parflex Division
Compatible Fitting	Liquifit	Minimum Burst Pressure	33.1 bar
Color	Red	Media	Water (Potable Water)
Standard Pack Qty (ft)	500	Color	RED
Product Type	Fractional, Instr. Grade	Order Size	.170
