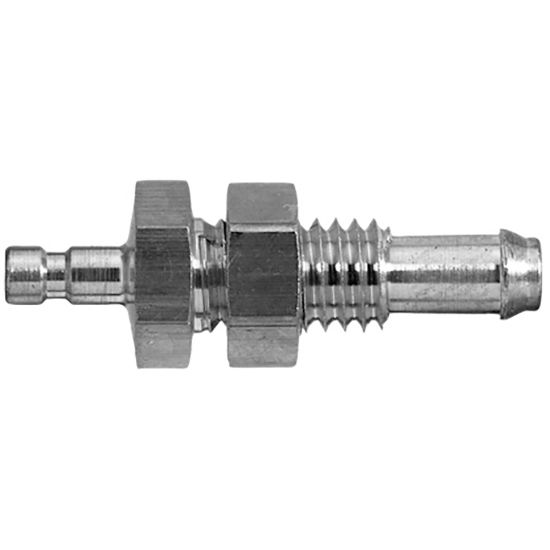

Parker's Smallest Quick Coupling, Series 02 - 02SFTS03MXN

Name: Parker's Smallest Quick Coupling, Series 02 - 02SFTS03MXN
SKU: 02SFTS03MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 1.5 for pneumatic and fluid handling applications up to 35 bar. Parker's smallest mini industrial coupling system. Available made of brass.

Availability:

Backordered

SKU: 02SFTS03MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Flow Rate	105 L/min
Seal Material	n/a	Maximum Operating Pressure	35 bar
Length	23 mm	Version	Single Shut-Off
Diameter	1.5 mm (nominal)	Hex Size	7 mm
Valve Included	No	Outside Diameter	n/a
Type	Plug	Hose I.D.	3 mm
Connection Type	Panel Mount with Hose Barb	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated
