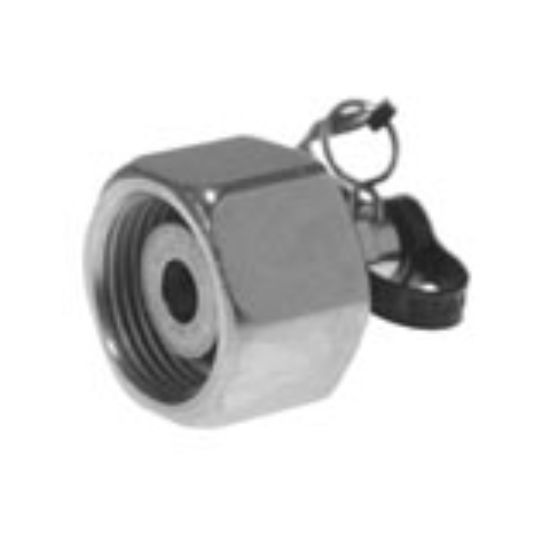

Parker SensoControl Test Points - VKA1/12LCF

Name: Parker SensoControl Test Points - VKA1/12LCF
SKU: VKA1/12LCF
Availability: OutOfStock

The role of Parker SensoControl test points is the monitoring and inspection, and also sampling, of high, low and vacuum systems. They are used for venting cylinders and hydraulic installations.

Availability:

Backordered

SKU: VKA1/12LCF

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division
Connection 1 Tube Outside Diameter	12 mm	Connection 1 Type	24° Cone swivel nut connection
Optional Accessories	n/a	Connection 2 Tube Outside Diameter	n/a
Primary Seal	O-Ring	Connection Thread Size	M 18x1.5
Product Style	Test point fitting with pin lock for cones	Length	n/a
Seal Material	NBR	Materials of Construction	Steel
Connection 2 Type	n/a	Product Series	Light

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Certificate LR2382883TA for Testpoints
