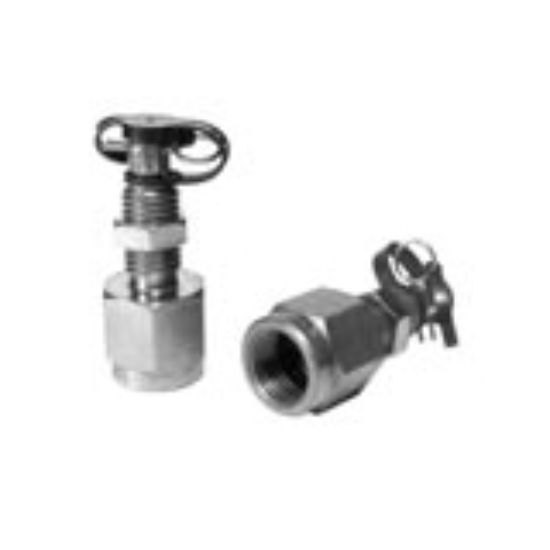

Parker SensoControl Test Points - MAV1/2MA1CF

Name: Parker SensoControl Test Points - MAV1/2MA1CF
SKU: MAV1/2MA1CF
Availability: OutOfStock

The role of Parker SensoControl test points is the monitoring and inspection, and also sampling, of high, low and vacuum systems. They are used for venting cylinders and hydraulic installations.

Availability:

Backordered

SKU: MAV1/2MA1CF

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division
Materials of Construction	Steel	Seal Material	NBR
Product Series	n/a	Product Style	Test pont pressure gauge connector with pin-lock
Connection Thread Size	G 1/2	Connection 2 Type	n/a
Optional Accessories	n/a	Connection 1 Type	Female BSP
Length	n/a	Primary Seal	Sealing Ring DIN 16259
Connection 2 Tube Outside Diameter	n/a	Connection 1 Tube Outside Diameter	n/a

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Certificate LR2382883TA for Testpoints
