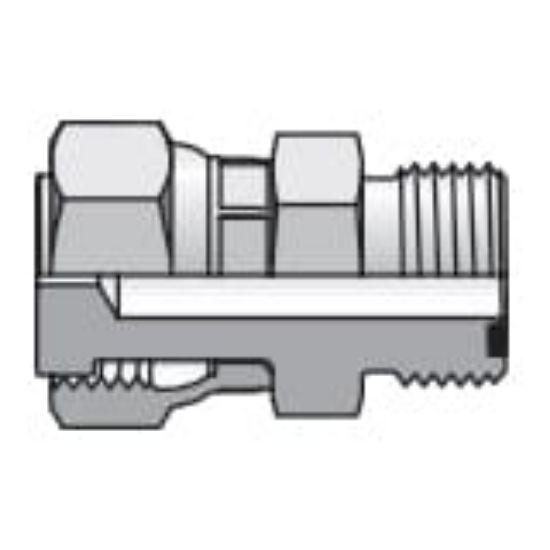

Orifice Fittings - 4 LOHL6-S .094 ORIFICE

Parker's compact and cost effective Orifice Fittings allow OEMs to pre-set, at the factory, a specified orifice in specific hydraulic tube or hose lines, which eliminates or minimizes the need for costly flow control valves.

Availability:	Backordered
Partner Available:	Backordered

SKU: 4 LOHL6-S .094 ORIFICE

Products specifications

Attribute name	Attribute value
Connection Type	In-Line Orifice Fitting	Shape	Straight
Maximum Dynamic Pressure	12000 psi	O-Ring Material	90 Durometer Nitrile
Body Material	Steel	Division	Tube Fittings Division
Connection 1 Tube O.D. (inch)	1/4	Orifice	0.094
Connection 1 Style	Male O-ring Face Seal	Connection 2 Style	Female O-ring Face Seal Swivel with Orifice
Connection 2 Tube O.D. (inch)	1/4

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
