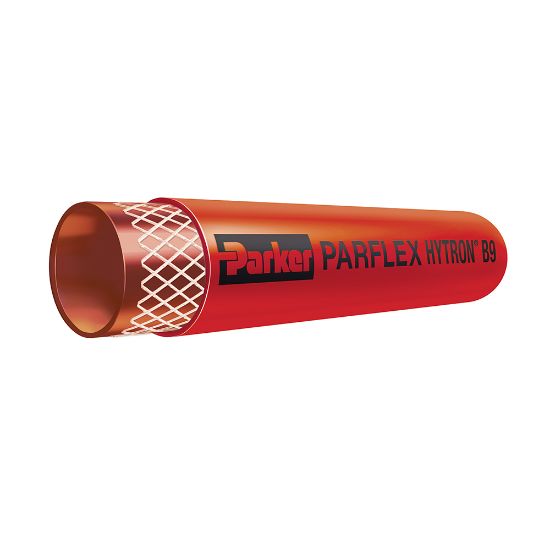

OBSOLETE: Transfer Hose - B9 - B904

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered
Partner Available:	132 in stock

SKU: B904

Products specifications

Attribute name	Attribute value
Compatible Fitting	56 Series	Maximum Operating Temperature	200 °F
Minimum Bend Radius	38 mm	Design Factor	4:1
Size	-4	Hose Inner Tube Material	Specially Formulated Polyurethane
Cover Material	Polyurethane Specially Formulated	Specifications Met	N/A
Vacuum Pressure Rating	28 Inch-Hg	Hose Reinforcement Material	Fiber
Maximum Operating Pressure	1.7 MPa	Media	Lubricants (Oils)
Inside Diameter	6 mm	Minimum Operating Temperature	-40 °F
Outside Diameter	11.7 mm	Application	Pneumatics
Weight	0.07 kg/m	Division	Parflex Division
Color	RED	Hose I.D. (inch)	0.25
