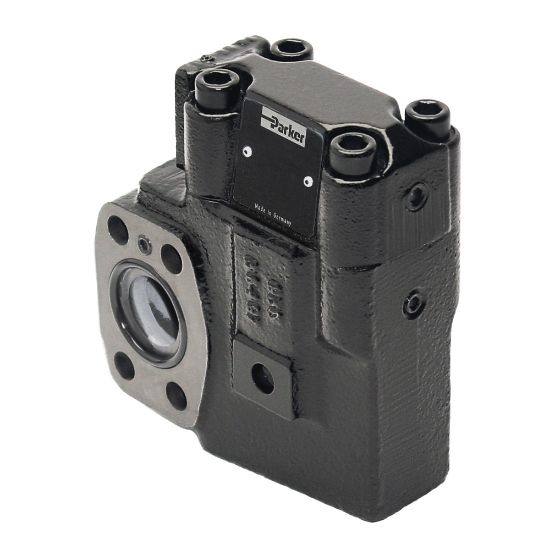

OBSOLETE: 2-Port Pressure Compensator, SAE Flange - Series R5A - 016-91403-0

Name: OBSOLETE: 2-Port Pressure Compensator, SAE Flange - Series R5A - 016-91403-0
SKU: 016-91403-0
Availability: OutOfStock

This product is no longer available – please contact us for further assistance.

Availability:

Backordered

SKU: 016-91403-0

Qty:

Products specifications

Attribute name	Attribute value
Function	2-Way Pressure Compensator	For Fluid Type	Hydraulic Oil According to DIN 51524
Seal Material	NBR	Maximum Operating Temperature	60 °C
Maximum Operating Pressure	350 bar	Flow Rate	300 L/min
Mounting Type	Flanged according SAE61	Product Series	Flow Valve
Body Type	2-port	Actuation Type	Oil Pilot
Division	Hydraulic Valve Systems Division Europe	Maximum Flow Rate	n/a
Weight	4.3 kg	Body Material	Cast Iron
Minimum Operating Temperature	-20 °C	Operation Type	Direct
Connection Type	n/a	Connection Size	1 inch
Configuration	n/a
Seal Material	NBR	Port Connection	1"
Port Size	SAE61
