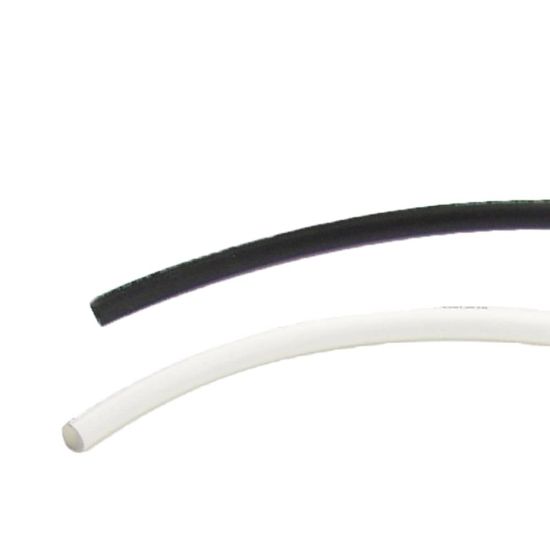

Nylon Tubing - NR Series - NBR-4-050

High Strength Nylon Tubes - NR Series Polyamide Tubing features low moisture absorption and better chemical resistance than Series N Nylon Tubing.

Availability:	3500 in stock
Partner Available:	2008 in stock

SKU: NBR-4-050

$1.28

Products specifications

Attribute name	Attribute value
Specifications Met	N/A	Maximum Operating Temperature	93 °C
Cover Color	n/a	Size	-4
Division	Parflex Division	Length per Package	76.2 m
Application	Pneumatics	Minimum Burst Pressure	2500 psi
Maximum Operating Pressure	43.1 bar	Tube Outside Diameter	1/4 inch
Tube Material	Polyamide (PA)	Weight	0.021 kg/m
Minimum Bend Radius	22.3 mm	Compatible Fitting	Compress-Align®
Minimum Operating Temperature	-60 °F	Tube Inside Diameter	3.9 mm
Cover Material	n/a	Media	Hydraulic Fluids
Color	BLACK	Order Size	1/4
Standard Pack Qty (ft)	250
