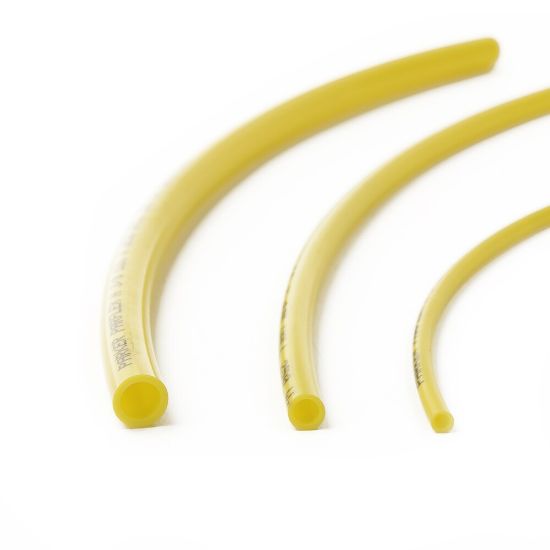

Nylon Tubing - N-4-035-YEL

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Availability:	250 in stock
Partner Available:	493 in stock

SKU: N-4-035-YEL

$0.98

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	22.4 mm	Size	-4
Minimum Operating Temperature	-65 °F	Application	Fluid Transfer
Tube Inside Diameter	4.6 mm	Length per Package	250 ft
Media	Air	Maximum Operating Pressure	17.2 bar
Specifications Met	N/A	Maximum Operating Temperature	93 °C
Weight	0.016 kg/m	Color	Yellow
Compatible Fitting	Compression	Tube Outside Diameter	1/4 inch
Tube Material	Polyamide (PA)	Minimum Burst Pressure	1000 psi
Division	Parflex Division	Cover Material	n/a
Order Size	1/4	Color	YELLOW
Standard Pack Qty (ft)	250
