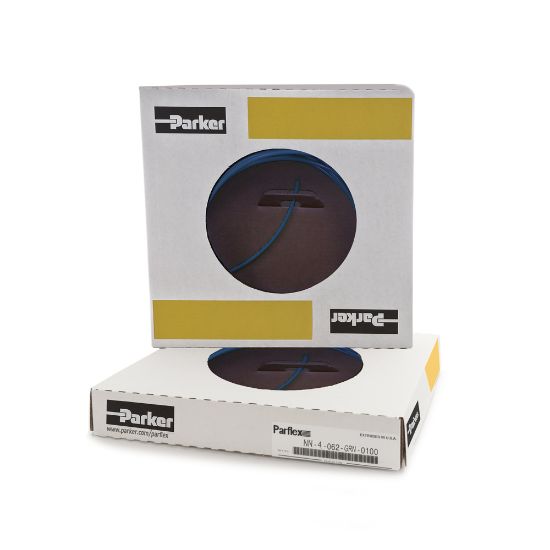

Nylon Tubing - N-4-035-BLU-0100

Name: Nylon Tubing - N-4-035-BLU-0100
SKU: N-4-035-BLU-0100
Availability: OutOfStock

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Availability:

Backordered

SKU: N-4-035-BLU-0100

Qty:

Products specifications

Attribute name	Attribute value
Color	Blue	Division	Parflex Division
Tube Material	Polyamide (PA)	Media	Water
Tube Outside Diameter	1/4 inch	Weight	0.016 kg/m
Minimum Burst Pressure	69 bar	Length per Package	100 ft Box
Minimum Bend Radius	0.88 inch	Application	Lubrication
Maximum Operating Pressure	250 psi	Cover Material	n/a
Maximum Operating Temperature	93 °C	Size	-4
Specifications Met	N/A	Compatible Fitting	Prestolok®
Minimum Operating Temperature	-65 °F	Tube Inside Diameter	4.6 mm
Order Size	1/4	Standard Pack Qty (ft)	100 ft box
Color	BLUE
