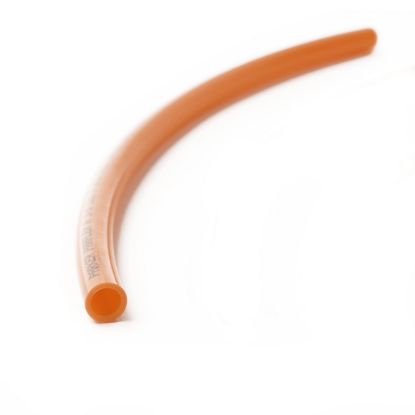

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Nylon Air Brake Tubing - 1120-6B-YEL-500

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:	2000 in stock
Partner Available:	5278 in stock

SKU: 1120-6B-YEL-500

$1.57

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Media	Air	Size	-6
Minimum Bend Radius	1-1/2 inch	Tube Outside Diameter	0.375 inch
Maximum Operating Pressure	150 psi	Color	Yellow
Weight	0.027 lb/ft	Application	Air Brake
Cover Color	Yellow	Product Type	Reinforced
Tube Material	Polyamide (PA) Fiber Reinforcement	Cover Material	Polyamide (PA)
Compatible Fitting	Air Brake	Specifications Met	D.O.T. 49 CFR 571.106
Tube Inside Diameter	0.251 inch	Minimum Burst Pressure	96.5 bar
Maximum Operating Temperature	93 °C
Color	YELLOW	Tube O.D. (inch)	3/8
Standard Pack Qty (ft)	500
