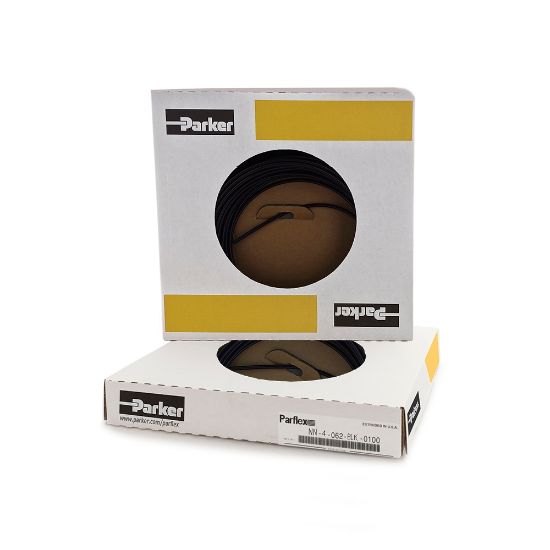

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Nylon Air Brake Tubing - 1120-4A-BLK-100

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:	596 in stock
Partner Available:	2064 in stock

SKU: 1120-4A-BLK-100

$1.12

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Media	Air	Size	-4
Cover Material	n/a	Tube Inside Diameter	0.17 inch
Tube Outside Diameter	6.4 mm	Color	Black
Weight	0.012 lb/ft	Application	Air Brake
Cover Color	n/a	Tube Material	Polyamide (PA)
Compatible Fitting	PTC	Specifications Met	SAE J844
Minimum Bend Radius	25.4 mm	Minimum Burst Pressure	82.7 bar
Maximum Operating Pressure	10.3 bar	Maximum Operating Temperature	200 °F
Color	BLACK	Tube O.D. (inch)	1/4
Standard Pack Qty (ft)	100 ft box
