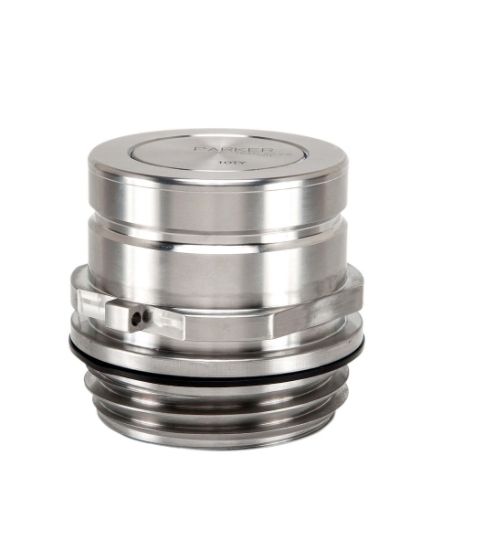

Non-Spill, Low Pressure, High Flow, Stainless Steel Quick Couplings - NSL Series - NSL-2002-32MBU-S3

Name: Non-Spill, Low Pressure, High Flow, Stainless Steel Quick Couplings - NSL Series - NSL-2002-32MBU-S3
SKU: NSL-2002-32MBU-S3
Availability: OutOfStock

Parker’s NSL Series low-pressure, non-spill couplings provide an easy to-use, secure connection to transfer, fill and dispense Diesel Exhaust Fluid (DEF) from point of manufacture to bulk, point-of-use storage.

Availability:

Backordered

SKU: NSL-2002-32MBU-S3

Qty:

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Body Size	2 inch
Minimum Operating Temperature	-15 °F	Maximum Operating Temperature	150 °F
Product Type	Push-to-Connect	Flow Rate	100 Gal/min
Application	Hydrualic, High Flow	Maximum Operating Pressure	95 psi
Seal Material	Fluorocarbon	Body Material	Stainless Steel
Valve Type	Non-spill
Connection Type	Male Buttress Thread	Coupling Half	Male Nipple

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
