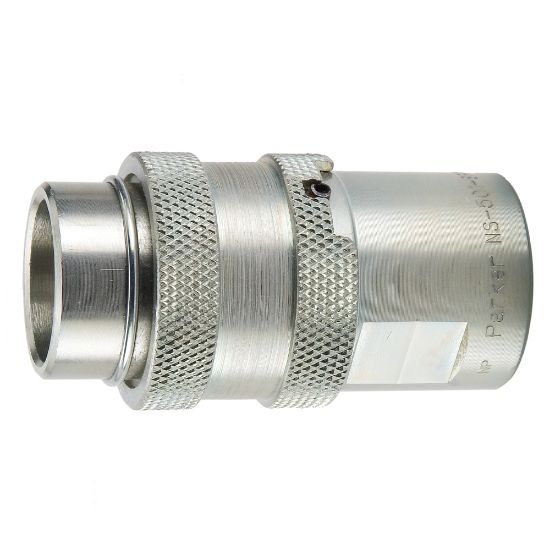

Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series - NS-501-10FO

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered
Partner Available:	7 in stock

SKU: NS-501-10FO

$154.05

Products specifications

Attribute name	Attribute value
Flow Rate	12 Gal/min	Product Type	Push to Connect
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Body Material	Steel	Maximum Operating Pressure	2500 psi
Plating Type	Zinc with clear trivalent chromate	Minimum Operating Temperature	-40 °F
Application	Hydraulics	Hex Size	1.25 inch
Locking Sleeve Included	Yes	Dimensional Weight	0.12464028776978417 lb
Seal Material	Nitrile	Division	Quick Coupling Division
Body Size (inch)	1/2	Connection Thread Size (inch)	7/8 - 14
Connection Type	Female ORB	Coupling Half	Female Coupler
