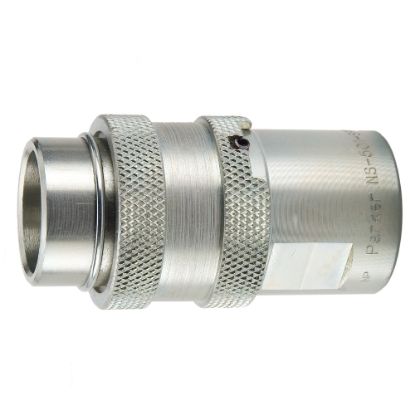

Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series - NS-372-6FP

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	23 in stock
Partner Available:	188 in stock

SKU: NS-372-6FP

$44.79

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Quick Coupling Division
Flow Rate	10 Gal/min	Hex Size	0.94 inch
Product Type	Push to Connect	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Body Material	Steel
Maximum Operating Pressure	2500 psi	Application	Hydraulics
Dimensional Weight	0.02670863309352518 lb	Plating Type	Zinc with clear trivalent chromate
Minimum Operating Temperature	-40 °F
Connection Type	Female NPSF	Coupling Half	Male Nipple
Body Size (inch)	3/8	Connection Thread Size (inch)	3/8 - 18
