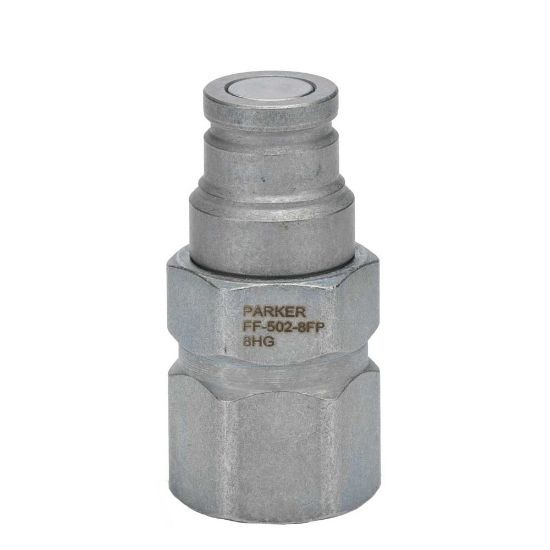

Non-Spill, Flat Face Hydraulic Quick Couplings - FF and FC Series - FF-502-8FP-E4

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered
Partner Available:	Backordered

SKU: FF-502-8FP-E4

$82.29

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Application	Hydraulic, non-spill	Hex Size	36 mm
Minimum Operating Temperature	-15 °F	Body Material	Steel
Plating Type	Zinc nickel plating	Valve Type	Non-spill
Product Type	Push to Connect	Seal Material	Fluorocarbon
Flow Rate	12 Gal/min
Connection Type	Female NPSF	Interchange Type	na
Coupling Half	Male Nipple	Connection Thread Size (inch)	1/2 - 14
Maximum Operating Pressure	3000	Body Size (inch)	1/2

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
