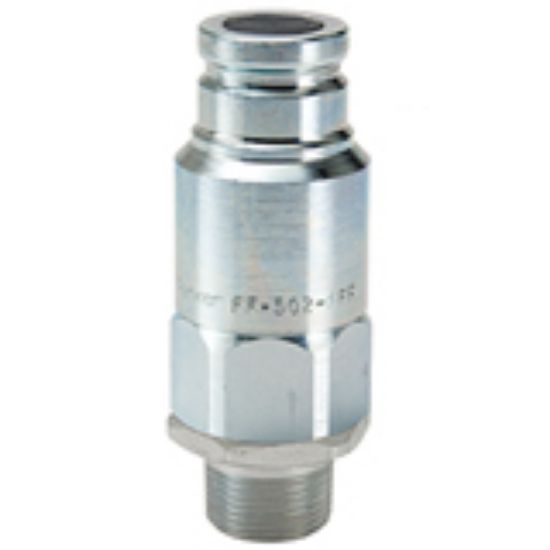

Non-Spill, Flat Face Hydraulic Quick Couplings - FF and FC Series - FF-252-6MO

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered
Partner Available:	1 in stock

SKU: FF-252-6MO

$96.79

Products specifications

Attribute name	Attribute value
Flow Rate	3 Gal/min	Body Material	Steel
Seal Material	Nitrile	Product Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Valve Type	Non-spill	Maximum Operating Temperature	250 °F
Hex Size	1.00 inch	Application	Hydraulic, non-spill
Minimum Operating Temperature	-40 °F
Coupling Half	Male Nipple	Connection Type	Male UNF
Body Size (inch)	1/4	Interchange Type	na
Maximum Operating Pressure	5000	Connection Thread Size (inch)	9/16-18

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
