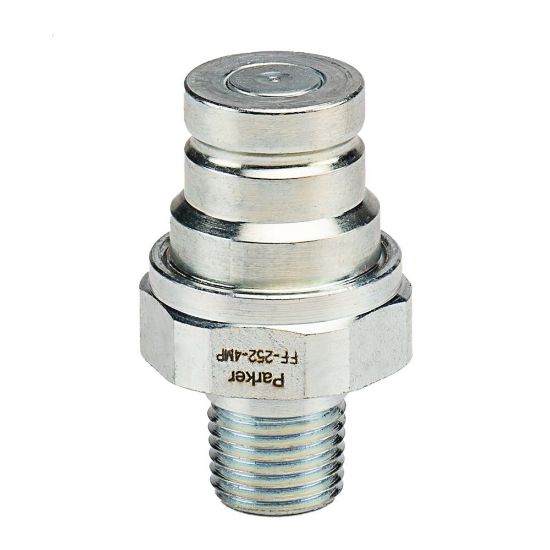

Non-Spill, Flat Face Hydraulic Quick Couplings - FF and FC Series - FF-252-4MP

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered
Partner Available:	40 in stock

SKU: FF-252-4MP

$87.77

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Temperature	250 °F
Valve Type	Non-spill	Product Type	Push to Connect
Flow Rate	3 Gal/min	Division	Quick Coupling Division
Hex Size	1 inch	Seal Material	Nitrile
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Dimensional Weight	0.02670863309352518 lb	Application	Hydraulics
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Maximum Operating Pressure	5000
Interchange Type	na	Connection Type	Male NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
