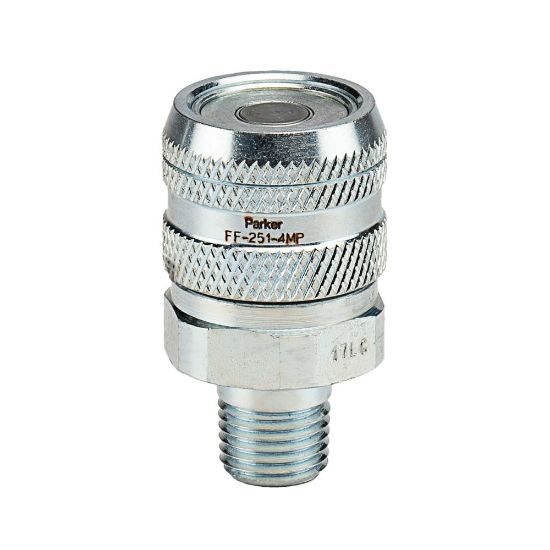

Non-Spill, Flat Face Hydraulic Quick Couplings - FF and FC Series - FF-251-4MP

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered
Partner Available:	3 in stock

SKU: FF-251-4MP

$164.54

Products specifications

Attribute name	Attribute value
Flow Rate	3 Gal/min	Valve Type	Non-spill
Body Material	Steel	Seal Material	Nitrile
Product Type	Push to Connect	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Hex Size	1 inch
Maximum Operating Temperature	250 °F	Dimensional Weight	0.05341726618705036 lb
Minimum Operating Temperature	-40 °F	Application	Hydraulics
Connection Thread Size (inch)	1/4 - 18	Body Size (inch)	1/4
Interchange Type	na	Connection Type	Male NPTF
Coupling Half	Female Coupler	Maximum Operating Pressure	5000

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
