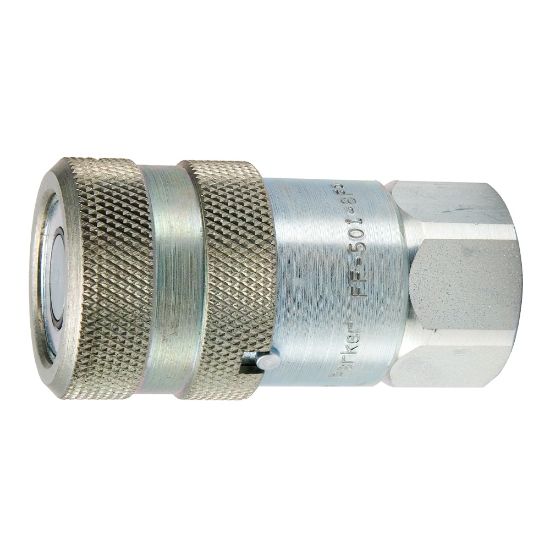

Non-Spill, Flat Face Hydraulic Quick Couplings - FF and FC Series - FF-1001-16FO

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered
Partner Available:	16 in stock

SKU: FF-1001-16FO

$388.80

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Minimum Operating Temperature	-40 °F	Body Material	Steel
Hex Size	1.87 inch	Dimensional Weight	0.6232014388489209 lb
Seal Material	Nitrile	Product Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate	Application	Hydraulics
Flow Rate	50 Gal/min	Division	Quick Coupling Division
Maximum Operating Pressure	3000	Connection Thread Size (inch)	1 5/16 - 12
Body Size (inch)	1	Coupling Half	Female Coupler
Interchange Type	na	Connection Type	Female UNF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
