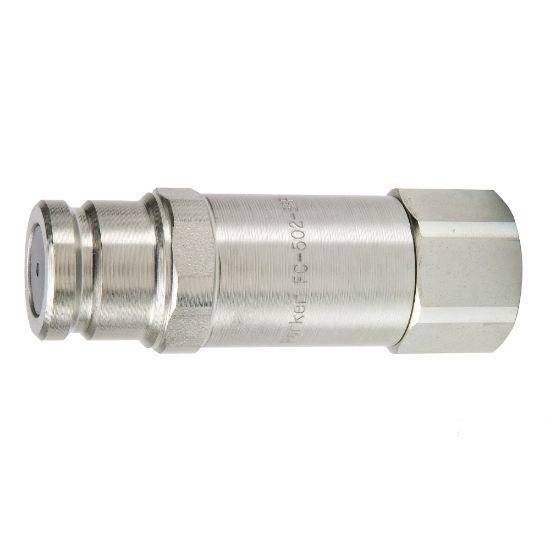

Non-Spill, Flat Face Hydraulic Quick Couplings - FF and FC Series - FC-502-10FO

Parker's non-spill, flat face hydraulic couplers and nipples are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion

Availability:	Backordered
Partner Available:	10 in stock

SKU: FC-502-10FO

$151.76

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Product Type	Push to Connect
Hex Size	1.125 inch	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Seal Material	Polyurethane/Nitrile
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Application	Hydraulics	Flow Rate	12 Gal/min
Body Material	Steel	Valve Type	Non-spill
Body Size (inch)	1/2	Connection Thread Size (inch)	7/8 - 14
Interchange Type	na	Connection Type	Female UNF
Coupling Half	Male Nipple	Maximum Operating Pressure	3000

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
