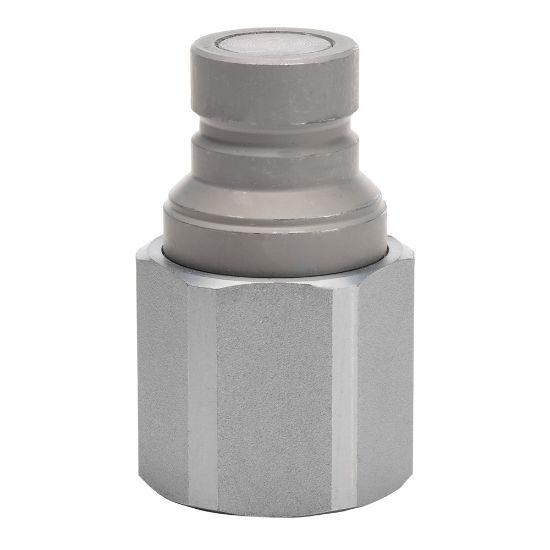

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-752-12FP

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	13 in stock
Partner Available:	87 in stock

SKU: FEM-752-12FP

$91.06

Products specifications

Attribute name	Attribute value
Flow Rate	26 Gal/min	Application	Hydraulics
Division	Quick Coupling Division	Seal Material	Polyurethane/Nitrile
Specifications Met	ISO 16028	Maximum Operating Temperature	250 °F
Hex Size	46 mm	Plating Type	Zink Nickel
Minimum Operating Temperature	-40 °F	Product Type	Push to Connect
Body Material	Steel	Dimensional Weight	0.12464028776978417 lb
Connection Thread Size (inch)	3/4 - 14	Coupling Half	Male Nipple
Connection Type	Female UN	Body Size (inch)	3/4
Maximum Operating Pressure	5000	Valve Type	Non-spill

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
