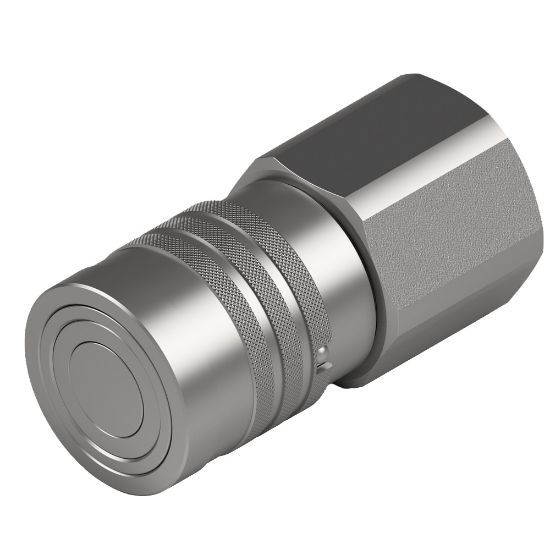

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-751-12FP

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	4 in stock
Partner Available:	50 in stock

SKU: FEM-751-12FP

$149.83

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Seal Material	Nitrile
Plating Type	Zinc Nickel	Flow Rate	26 Gal/min
Hex Size	46 mm	Application	Hydraulics
Minimum Operating Temperature	-40 °F	Specifications Met	ISO 16028
Body Material	Steel	Maximum Operating Temperature	250 °F
Product Type	Push to Connect
Valve Type	Non-spill	Maximum Operating Pressure	5000
Coupling Half	Female Coupler	Connection Thread Size (inch)	3/4 - 14
Connection Type	Female NPSF	Body Size (inch)	3/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
