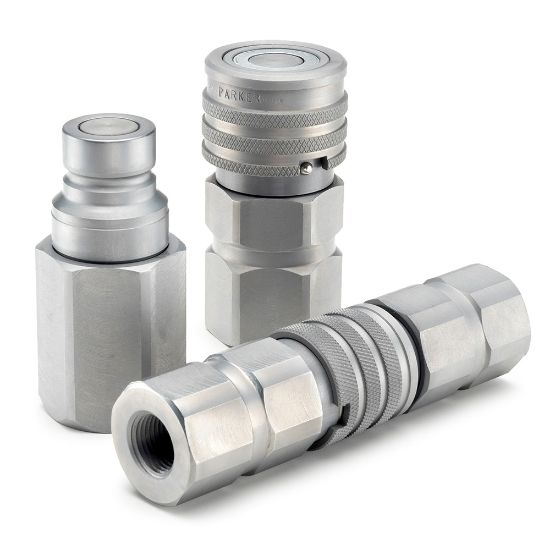

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-371-6MO

Name: Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-371-6MO
SKU: FEM-371-6MO
Availability: OutOfStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:

Backordered

SKU: FEM-371-6MO

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	6	Application	Hydraulics
Plating Type	Zinc Nickel	Minimum Operating Temperature	-40
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Temperature	250	Product Type	Push to Connect
Hex Size	30.0	Specifications Met	ISO
Body Material	Steel
Coupling Half	Female Coupler	Valve Type	Non-spill
Maximum Operating Pressure	5000	Connection Type	Male SAE
Body Size (inch)	3/8	Connection Thread Size (inch)	9/16 - 18
