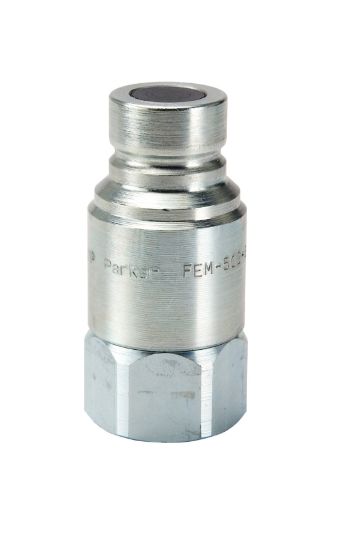

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-252-6FO

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Backordered
Partner Available:	53 in stock

SKU: FEM-252-6FO

$51.92

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Plating Type	Zink Nickel
Specifications Met	ISO 16028	Application	Hydraulics
Dimensional Weight	0.02670863309352518 lb	Body Material	Steel
Maximum Operating Temperature	110 °C	Product Type	Push to Connect
Flow Rate	3 Gal/min	Division	Quick Coupling Division
Seal Material	Polyurethane/Nitrile	Hex Size	22 mm
Coupling Half	Male Nipple	Connection Thread Size (inch)	9/16 - 18
Body Size (inch)	1/4	Connection Type	Female UN
Maximum Operating Pressure	4568	Valve Type	Non-spill

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
