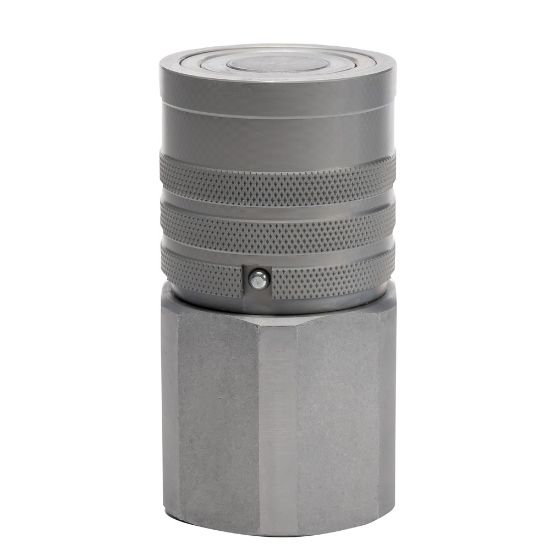

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEM-1001-16FO-NL

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Backordered
Partner Available:	3 in stock

SKU: FEM-1001-16FO-NL

$271.54

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Application	Hydraulics
Flow Rate	50 Gal/min	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Hex Size	55 mm
Maximum Operating Temperature	250 °F	Specifications Met	HTMA
Product Type	Push to Connect	Seal Material	Nitrile
Division	Quick Coupling Division	Dimensional Weight	0.6232014388489209 lb
Connection Type	Female UNF	Body Size (inch)	1
Connection Thread Size (inch)	1 5/16 - 12	Maximum Operating Pressure	2900
Valve Type	Non-spill	Coupling Half	Female Coupler

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
