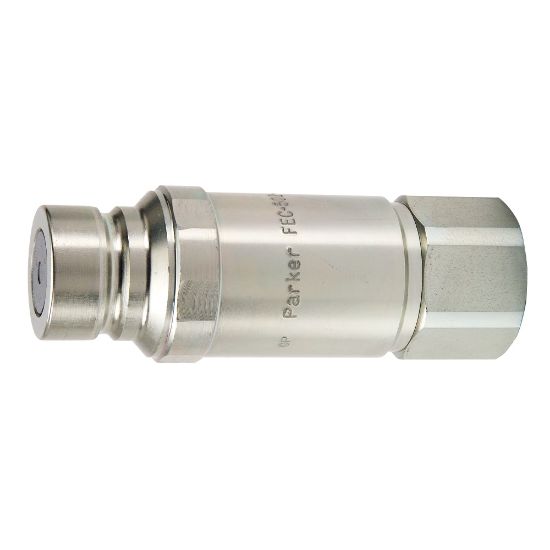

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEC-622-12FO

Name: Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEC-622-12FO
SKU: FEC-622-12FO
Availability: OutOfStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:

Backordered

SKU: FEC-622-12FO

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Plating Type	Zink Nickel
Minimum Operating Temperature	-40 °F	Seal Material	NBR
Product Type	Push to Connect	Body Material	Steel
Flow Rate	20 Gal/min	Specifications Met	ISO 16028
Application	Hydraulics	Division	Quick Coupling Division
Hex Size	1.50 inch
Valve Type	Non-Spill, Connect under pressure	Connection Thread Size (inch)	1 1/16 - 12
Body Size (inch)	5/8	Coupling Half	Male Nipple
Maximum Operating Pressure	3625	Connection Type	Female UNF

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
