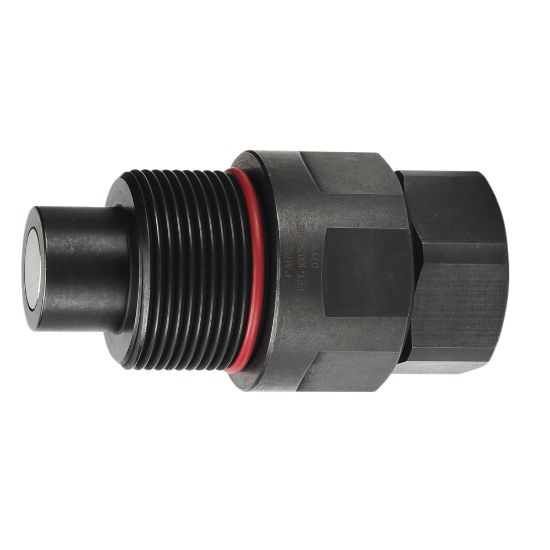

Non-Spill, Flat Face, High Pressure, Heavy Duty Hydraulic Quick Couplings - FET Series - FET-2002-32FP

Name: Non-Spill, Flat Face, High Pressure, Heavy Duty Hydraulic Quick Couplings - FET Series - FET-2002-32FP
SKU: FET-2002-32FP
Availability: OutOfStock

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: FET-2002-32FP

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Minimum Operating Temperature	-40 °F	Application	High Pressure
Hex Size 1	4-1/2 inch	Plating Type	Black FNC Coating
Product Type	Thread to Connect	Hex Size 2	3-3/4 inch
Division	Quick Coupling Division	Seal Material	Polyurethane/Nitrile
Coupling Half	Male Nipple	Connection Type	Female NPTF
Connection Thread Size (inch)	2 - 11 1/2	Maximum Operating Pressure	5000
Body Material	Steel	Body Size (inch)	2
