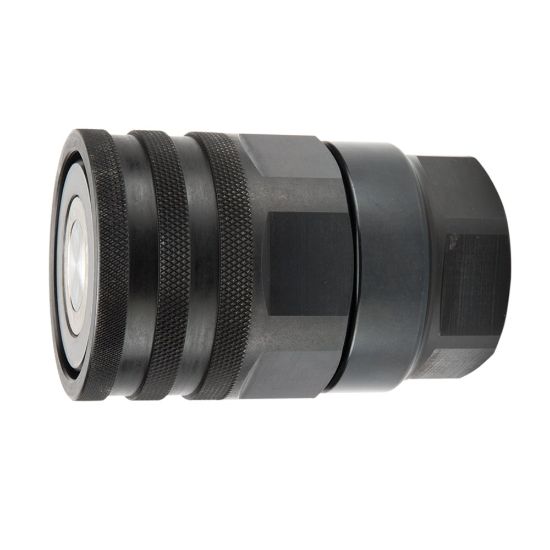

Non-Spill, Flat Face, High Pressure, Heavy Duty Hydraulic Quick Couplings - FET Series - FET-2001-32FP

Name: Non-Spill, Flat Face, High Pressure, Heavy Duty Hydraulic Quick Couplings - FET Series - FET-2001-32FP
SKU: FET-2001-32FP
Availability: OutOfStock

Parker's FNC coated, steel high-pressure, non-spill, screw to connect hydraulic couplers can connect under pressure for use in heavy duty, high impulse hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: FET-2001-32FP

Qty:

Products specifications

Attribute name	Attribute value
Product Type	Thread to Connect	Hex Size 1	n/a mm
Application	Non-Spill	Minimum Operating Temperature	-40 °F
Hex Size 2	3-3/4 inch	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Seal Material	Polyurethane/Nitrile
Division	Quick Coupling Division	Plating Type	Black FNC Coating
Body Material	Steel	Body Size (inch)	2
Connection Thread Size (inch)	2 - 11 1/2	Connection Type	Female NPTF
Coupling Half	Female Coupler	Maximum Operating Pressure	5000
