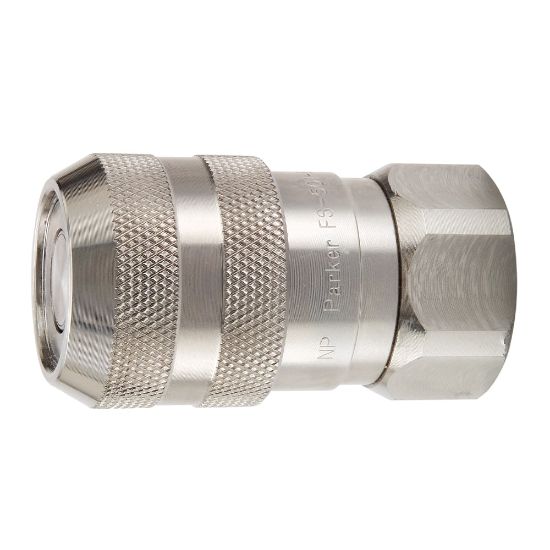

Non-Spill, Flat Face, Chemical Compatible Quick Couplings - FS Series - FS-371-6FP

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered
Partner Available:	29 in stock

SKU: FS-371-6FP

$353.21

Products specifications

Attribute name	Attribute value
Body Material	Stainless Steel 316	Valve Type	Non-spill
Maximum Operating Pressure	2000 psi	Application	Fluid Transfer
Seal Material	Fluorocarbon	Product Type	Push to Connect
Flow Rate	6 Gal/min	Division	Quick Coupling Division
Hex Size	1.06 inch	Maximum Operating Temperature	300 °F
Dimensional Weight	0.05341726618705036 lb	Minimum Operating Temperature	-15 °F
Body Size (inch)	3/8	Connection Type	Female NPT
Coupling Half	Female Coupler	Connection Thread Size (inch)	3/8 - 18

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
