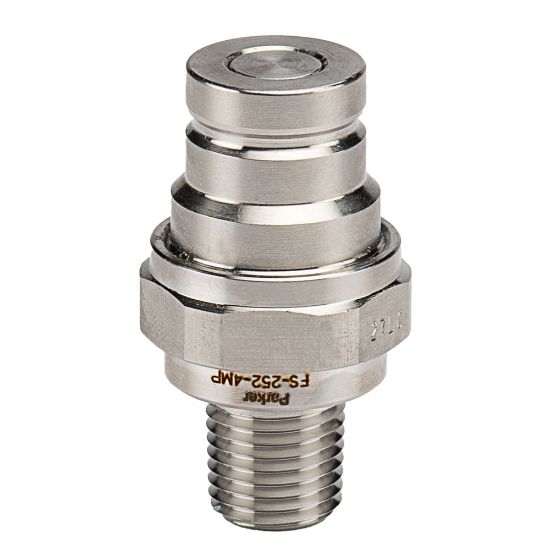

Non-Spill, Flat Face, Chemical Compatible Quick Couplings - FS Series - FS-252-4MP

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	35 in stock
Partner Available:	49 in stock

SKU: FS-252-4MP

$184.11

Products specifications

Attribute name	Attribute value
Valve Type	Non-spill	Application	Fluid Transfer
Product Type	Push to Connect	Flow Rate	3 Gal/min
Seal Material	Fluorocarbon	Minimum Operating Temperature	-15 °F
Division	Quick Coupling Division	Hex Size	1 inch
Maximum Operating Pressure	2000 psi	Body Material	Stainless Steel 316
Maximum Operating Temperature	400 °F
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Male Nipple
Body Size (inch)	1/4	Connection Type	Male NPTF
