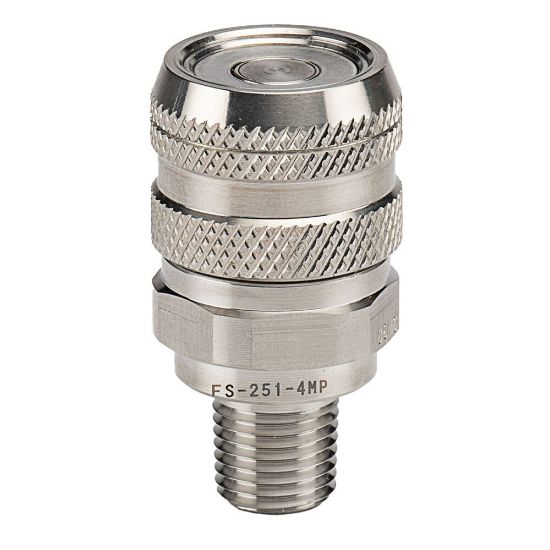

Non-Spill, Flat Face, Chemical Compatible Quick Couplings - FS Series - FS-251-4MP

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	47 in stock
Partner Available:	64 in stock

SKU: FS-251-4MP

$356.22

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	2000 psi	Valve Type	Non-spill
Body Material	Stainless Steel 316	Maximum Operating Temperature	400 °F
Flow Rate	3 Gal/min	Seal Material	Ethylene Propylene
Minimum Operating Temperature	-65 °F	Application	Fluid Transfer
Product Type	Push to Connect	Division	Quick Coupling Division
Hex Size	1 inch
Connection Thread Size (inch)	1/4 - 18	Body Size (inch)	1/4
Connection Type	Male NPTF	Coupling Half	Female Coupler
