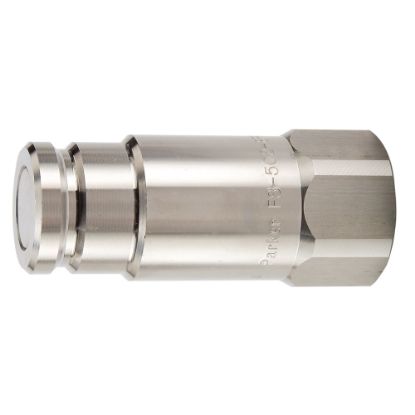

Non-Spill, Flat Face, Chemical Compatible Quick Couplings - FS Series - FS-251-4FP

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered
Partner Available:	15 in stock

SKU: FS-251-4FP

$330.44

Products specifications

Attribute name	Attribute value
Application	Chemical Transfer	Seal Material	Fluorocarbon
Product Type	Push to Connect	Flow Rate	3 Gal/min
Division	Quick Coupling Division	Hex Size	1 inch
Maximum Operating Pressure	2000 psi	Body Material	Stainless Steel 316
Maximum Operating Temperature	400 °F	Dimensional Weight	0.05341726618705036 lb
Minimum Operating Temperature	-15 °F	Valve Type	Non-spill
Body Size (inch)	1/4	Connection Type	Female NPT
Coupling Half	Female Coupler	Connection Thread Size (inch)	1/4 - 18
