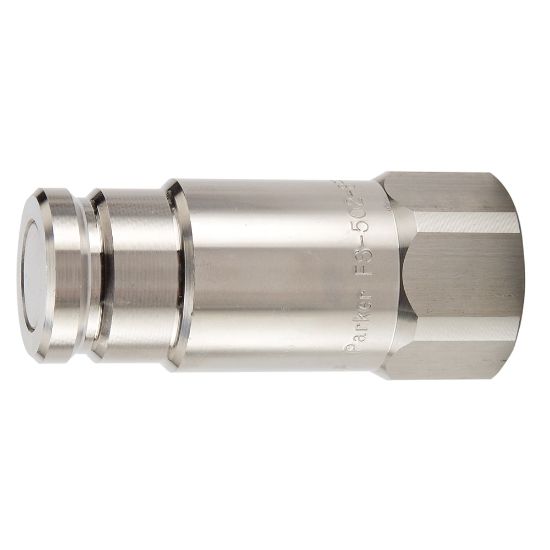

Non-Spill, Flat Face, Chemical Compatible Quick Couplings - FS Series - FS-1002-16FP

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered
Partner Available:	3 in stock

SKU: FS-1002-16FP

$402.93

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	2000 psi	Application	Fluid and chemical transfer
Valve Type	Non-spill	Product Type	Push to Connect
Seal Material	Fluorocarbon	Division	Quick Coupling Division
Hex Size	1.87 inch	Body Material	316 Stainless Steel
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-15 °F
Flow Rate	50 Gal/min
Coupling Half	Male Nipple	Body Size (inch)	1
Connection Type	Female NPT	Connection Thread Size (inch)	1 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
