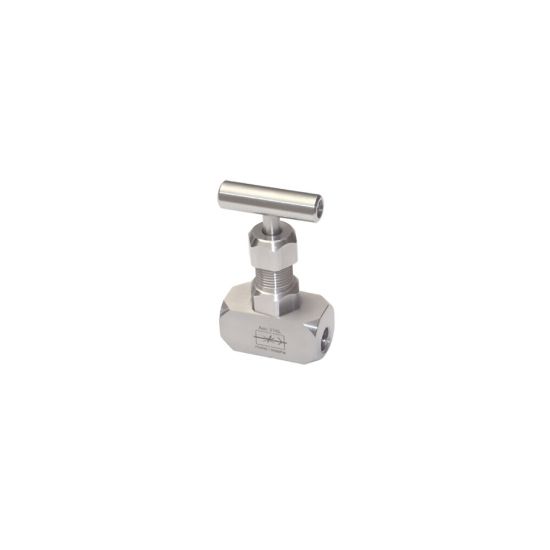

Needle Valves - 0591 04 13

Name: Needle Valves - 0591 04 13
SKU: 0591 04 13
Availability: OutOfStock

Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

Availability:

Backordered

SKU: 0591 04 13

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Application	Pneumatics	Sleeve Material	BRASS
Minimum Operating Temperature	-20 °C	Configuration	n/a
Actuation Type	Manual	Function	2-way
Mounting Type	Inline	Product Type	Needle Valves
Specifications Met	DI: 97/23/EC (module PED A - diameters greater than 25 mm)	Product Style	Female Needle Valve
Industry	Industrial Manufacturing Equipment	For Fluid Type	Oil
Operation Type	Lever-operated	Connection Size	G1/4
Connection Type	BSPP	Number of Ports	n/a
Brand	Legris	Technology	Process Control
Orifice Size	4 mm	Seat Material	n/a
Cycles per Lifetime	n/a	Weight	0.781 lb
Flow Rate	12.58 Nl/m at 6 bar (H20)	Body Material	Stainless Steel 316L
Seal Material	PTFE	Product Series	Stainless Steel Needle Valves
Maximum Flow Rate	12.58 NL/min at 6 Bar (H20)	Maximum Operating Pressure	5802 psi
Maximum Operating Temperature	180 °C	Handle Type	Butterfly Lever (Stainless Steel)
Region of Origin	Italy	O-Ring Material	PTFE
Connection 1 Thread Style	BSPP	Connection 1 Thread Size (metric)	G1/4
Connection 2 Tube O.D. (mm)	na	Diameter Nominal (DN)	4
Shape	Stailess steel needle valve female	Product Type	Stainless Steel Needle Valves
Body Material	STAINLESS STEEL 316L
