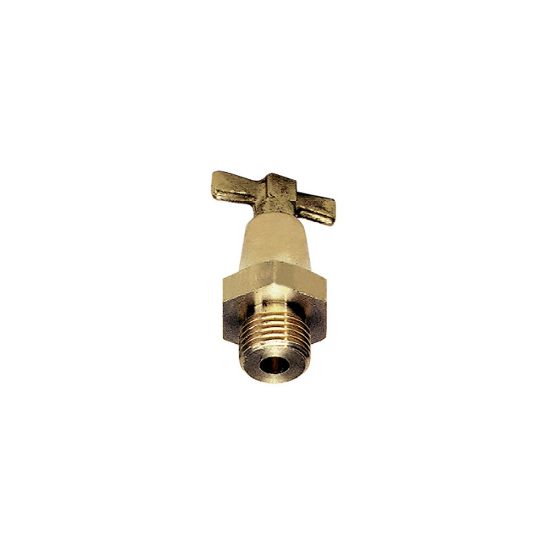

Needle Valves - 0562 05 60

Name: Needle Valves - 0562 05 60
SKU: 0562 05 60
Availability: OutOfStock

Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

Availability:

Backordered

SKU: 0562 05 60

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-20 °C	Configuration	n/a
Actuation Type	Manual	Function	n/a
Mounting Type	Inline	Seal Material	n/a
Product Type	Needle Valves	Specifications Met	DI: 97/23/EC (module PED A - diameters greater than 25 mm)
Maximum Operating Pressure	120 bar	Maximum Operating Temperature	212 °F
Industry	Industrial Manufacturing Equipment	Product Series	Brass Needle Valves
Maximum Flow Rate	22.98 NL/min at 6 Bar (H20)	Flow Rate	6.98 to 22.98 NL/min at 6 bar (H20)
For Fluid Type	Air	Operation Type	Lever-operated
Number of Ports	n/a	Brand	Legris
Technology	Process Control	Seat Material	n/a
Region of Origin	France	Cycles per Lifetime	n/a
Application	Textile	Orifice Size	5 mm
Weight	0.0682 lb	Handle Type	Butterfly Lever (Brass)
Product Style	Drain Male Valve	Connection Size	M10x1
Connection Type	Metric
Connection 1 Thread Style	metric	Connection 1 Thread Size (metric)	M10x1
Body Material	BRASS	Diameter Nominal (DN)	5
Connection 2 Tube O.D. (mm)	na	Product Type	Brass Needle Valves
Shape	Needle drain valve male
