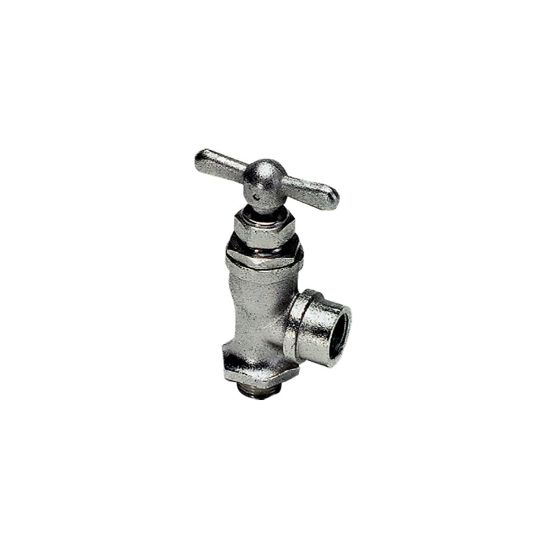

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Needle Valves - 0531 04 13

Name: Needle Valves - 0531 04 13
SKU: 0531 04 13
Availability: OutOfStock

Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

Availability:

Backordered

SKU: 0531 04 13

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Configuration	n/a	Actuation Type	Manual
Function	2-way	Minimum Operating Temperature	-4 °F
Mounting Type	Inline	Product Type	Needle Valves
Specifications Met	DI: 97/23/EC (module PED A - diameters greater than 25 mm)	Maximum Operating Pressure	120 bar
Product Style	Male and Female Needle Valve	Body Material	Nickel-Plated Brass
Industry	Industrial Manufacturing Equipment	Product Series	Brass Needle Valves
Maximum Flow Rate	6.98 NL/min at 6 Bar (H20)	Flow Rate	6.98 to 22.98 NL/min at 6 bar (H20)
Seal Material	Mineral Fiber	For Fluid Type	Oil
Operation Type	Lever-operated	Connection Size	G1/4
Connection Type	BSPP	Number of Ports	n/a
Brand	Legris	Technology	Fluid & Gas Handling
Handle Type	Butterfly Lever (Nickel-Plated Brass)	Orifice Size	4 mm
Seat Material	n/a	Region of Origin	France
Cycles per Lifetime	n/a	Weight	0.198 lb
Application	Textile
Connection 1 Thread Style	BSPP	Connection 1 Thread Size (metric)	G1/4
Body Material	NICKEL PLATED BRASS	Connection 2 Tube O.D. (mm)	na
Product Type	Brass Needle Valves	Diameter Nominal (DN)	4
Shape	Right angle needle valve male and female
