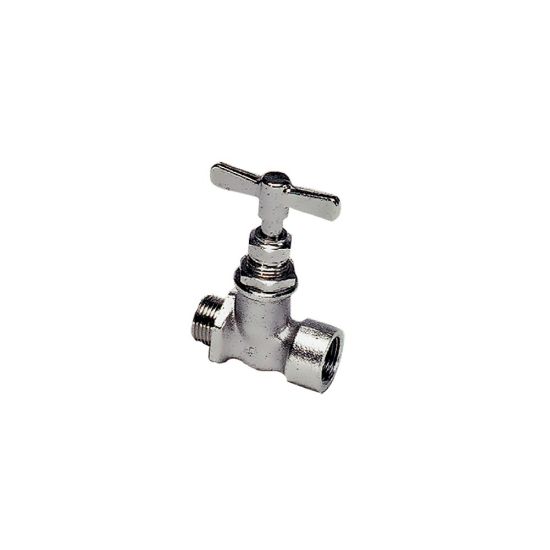

Needle Valves - 0501 06 17

Name: Needle Valves - 0501 06 17
SKU: 0501 06 17
Availability: OutOfStock

Parker Legris compact needle valves can be installed in any system and are designed for applications requiring accurate leak-free fluid control and excellent service life.

Availability:

Backordered

SKU: 0501 06 17

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Weight	0.158 kg	Configuration	n/a
Actuation Type	Manual	Function	2-way
Minimum Operating Temperature	-4 °F	Mounting Type	Inline
Application	Water Circuits	Product Type	Needle Valves
Specifications Met	DI: 97/23/EC (module PED A - diameters greater than 25 mm)	Maximum Operating Pressure	1740 psi
Product Style	Male and Female Needle Valve	Body Material	Nickel-Plated Brass
Industry	Industrial Manufacturing Equipment	Product Series	Brass Needle Valves
Maximum Flow Rate	22.98 NL/min at 6 Bar (H20)	Flow Rate	6.98 to 22.98 NL/min at 6 bar (H20)
Seal Material	Mineral Fiber	For Fluid Type	Inert Gases
Operation Type	Lever-operated	Connection Size	G3/8
Connection Type	BSPP	Number of Ports	n/a
Brand	Legris	Technology	Pneumatics
Handle Type	Butterfly Lever (Nickel-Plated Brass)	Orifice Size	6 mm
Seat Material	n/a	Region of Origin	France
Cycles per Lifetime	n/a
Connection 1 Thread Style	BSPP	Connection 1 Thread Size (metric)	G3/8
Body Material	NICKEL PLATED BRASS	Connection 2 Tube O.D. (mm)	na
Shape	In line needle valve male and female	Product Type	Brass Needle Valves
Diameter Nominal (DN)	6

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Needle Valves Datasheet
