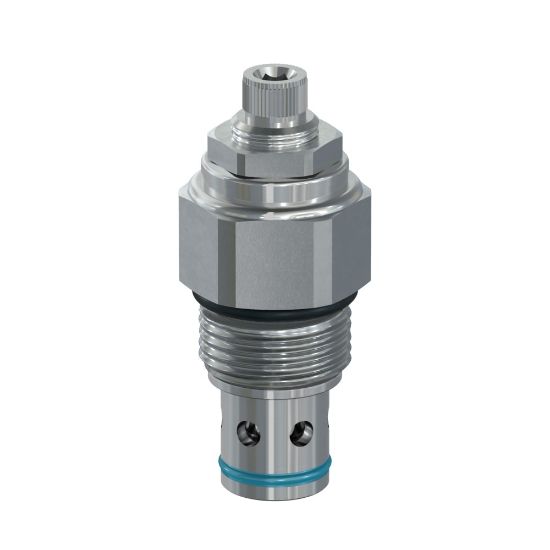

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Needle Flow Control Valves - NVH101FS

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Backordered
Partner Available:	5 in stock

SKU: NVH101FS

$48.25

Products specifications

Attribute name	Attribute value
Operating Temperature	-35 to +200 °F	Actuation Type	Manual
Connection Type	n/a	Connection Size	n/a
Division	Hydraulic Systems Division	Leak Rate	5 @ 5000 PSI (345 BAR) drops/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Needle Type	Fine
Operation Type	Manually operated	Minimum Operating Temperature	-35 °F
Configuration	Needle	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Cartridge Systems Division	Maximum Inlet Pressure Rating	380 bar
Installation Torque	37-41 lb-ft	Function	2-way
Seal Material	D-Ring (Standard)	Cavity Size	C10-2
Adjustment Mechanism	Screw	Weight	0.18 kg
Flow Rate	60 L/min	Maximum Operating Temperature	+200 °F
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	60 L/min
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Pressure	380 bar
Flow Rate	16 GAL/MIN, 60 L/MIN	Needle Type	Fine
Seal Material	D-Ring (Standard)	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
