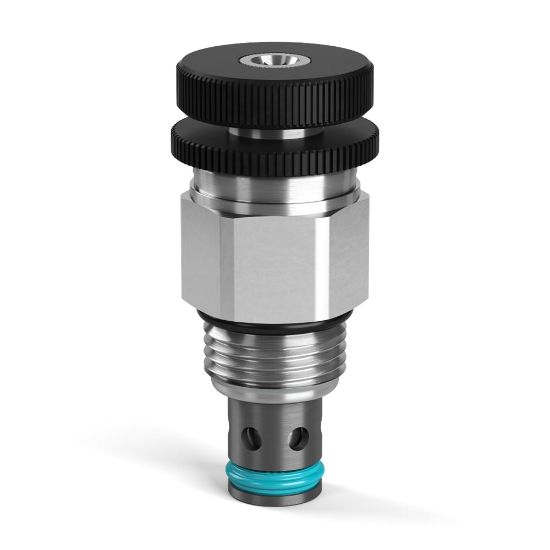

Needle Flow Control Valves - NVH081TV

Name: Needle Flow Control Valves - NVH081TV
SKU: NVH081TV
Availability: OutOfStock

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:

Backordered

SKU: NVH081TV

Qty:

Products specifications

Attribute name	Attribute value
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operation Type	Manually operated
Leak Rate	5 @ 5000 PSI (345 BAR) drops/min	Body Material	n/a
Minimum Operating Temperature	-26 °C	Maximum Operating Pressure	380 bar
Installation Torque	31-37 Nm	Needle Type	Coarse
Division	Hydraulic Cartridge Systems Division	Function	2-way
Division	Hydraulic Systems Division	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.2 lb	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Cavity Size	C08-2
Configuration	Needle	Maximum Flow Rate	10 Gal/min
Adjustment Mechanism	Tamper Resistant	Flow Rate	10 Gal/min
Maximum Inlet Pressure Rating	5500 psi	Actuation Type	Manual
Connection Type	n/a	Connection Size	n/a
Operating Temperature	-26 to +204 °C
Needle Type	Coarse	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Flow Rate	10 GAL/MIN, 38 L/MIN	Seal Material	Fluorocarbon
Adjustment Mechanism	Tamper Resistant
