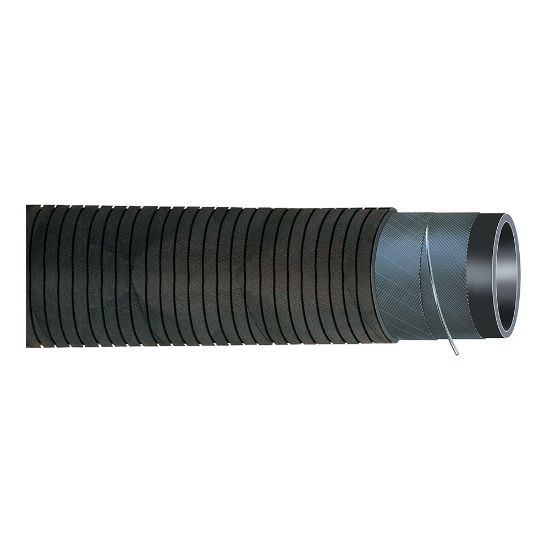

Multipurpose Transfer Hose - E-Z Form™ MP - IH72192500/10

Name: Multipurpose Transfer Hose - E-Z Form™ MP - IH72192500/10
SKU: IH72192500/10
Availability: OutOfStock

E-Z Form™ MP multipurpose oil resistant hose is designed and manufactured as a versatile, solution-driven product for OEM and aftermarket-related.

Availability:

Backordered

SKU: IH72192500/10

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	5 bar	Industry	Industrial Manufacturing Equipment
Design Factor	4:1	Division	Polymer Hose Division Europe
Specifications Met	Parker Specifications	Media	Fuels - Check fuel type with our catalogue chart.
Cover Material	Chloroprene Rubber (CR)	Weight	1.74 kg/m
Materials of Construction	Rubber	Minimum Operating Temperature	-20 °F
Hose Inner Tube Material	Nitrile Butadiene Rubber (NBR)	Application	Air
Inside Diameter	2-1/2 inch	Technology	Fluid & Gas Handling
Maximum Operating Temperature	200 °F	Minimum Bend Radius	7.205 inch
Vacuum Pressure Rating	0.9 bar	Outside Diameter	3.012 inch
Product Type	Suction Hose	Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix
Brand	Parker
Hose I.D. (mm)	63.5
