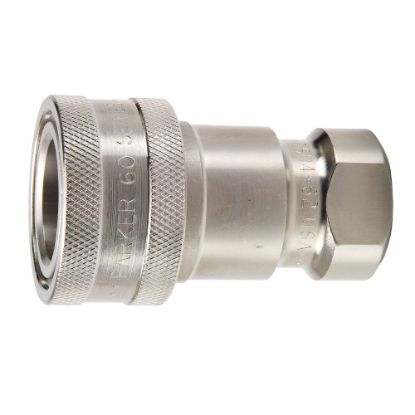

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SSH8-63Y

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	10 in stock
Partner Available:	1 in stock

SKU: SSH8-63Y

$410.80

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-26 °C	Product Type	Manual Connect
Valve Type	Poppet	Maximum Operating Temperature	400 °F
Plating Type	n/a	Flow Rate	50 Gal/min
Vacuum Pressure Rating	-0.9 bar	Division	Quick Coupling Division
Specifications Met	ISO 7241-1 Series B	Hex Size	1.62 inch
Valve Material	Stainless Steel 316	Dimensional Weight	0.1335431654676259 lb
Coupling Half	Male Nipple	Body Size (inch)	1
Maximum Operating Pressure	3000	Application	General Purpose
Seal Material	Fluorocarbon	Body Material	316 Stainless Steel
Connection Thread Size (inch)	1 - 11 1/2	Connection Type	Female NPTF
