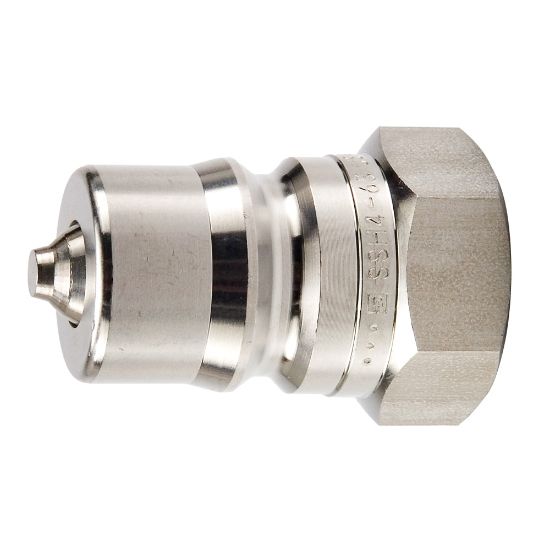

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SSH6-63Y-T12

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: SSH6-63Y-T12

$391.93

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400 °F	Plating Type	n/a
Hex Size	1.34 inch	Division	Quick Coupling Division
Minimum Operating Temperature	-15 °F	Specifications Met	ISO 7241-1 Series B
Vacuum Pressure Rating	-0.9 bar	Valve Material	Stainless Steel 316
Dimensional Weight	0.1335431654676259 lb	Flow Rate	106 L/min
Product Type	Manual Connect	Valve Type	Poppet
Connection Type	Female ORB	Body Material	316 Stainless Steel
Seal Material	Fluorocarbon	Body Size (inch)	3/4
Coupling Half	Male Nipple	Application	General Purpose
Maximum Operating Pressure	3000	Connection Thread Size (inch)	1 1/16 - 12

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
